Urban Tool

Your site plan, in minutes

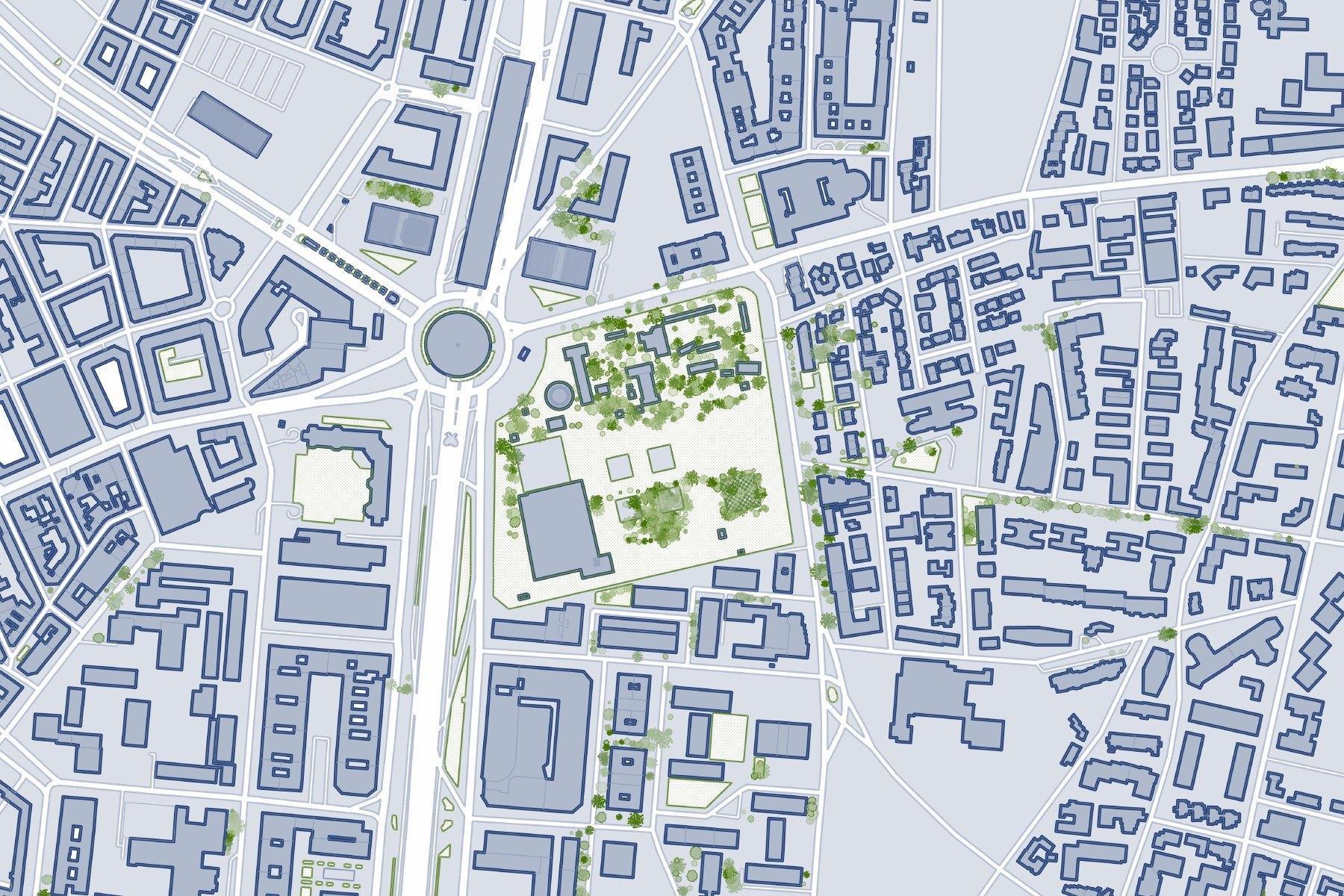

Mark your site on the map and Urban Tool draws the surroundings from open data (OpenStreetMap and, in Spain, the Cadastre): blocks, streets, green areas and trees, with board-ready styles.

Open Urban Tool All tools

DXF
3DM (Rhino)
3D

From map to DXF

Pick the area and download the drawing with tidy layers.

Official data

Open mapping and, in Spain, Cadastre plots and buildings.

2D and 3D

DXF, Rhino (3DM) and a 3D massing of the surroundings.

Board styles

Palettes, line weights and shadows designed for print.

How it works

1
Find the place and mark your site.
2
Choose layers and style.
3
Download DXF, 3DM or 3D.

FAQ

How much does it cost?

You can try it for free with a librARy account. The tool licence unlocks every option and larger files.

Do I need to install anything?

No. It runs in the browser on Windows, Mac or Linux, and many tools also work on a phone or tablet.

Does it work outside Spain?

Yes, with OpenStreetMap data. In Spain it also adds Cadastre detail.
