CAD CleanerComing soon
Your DXF, clean and ready for the board

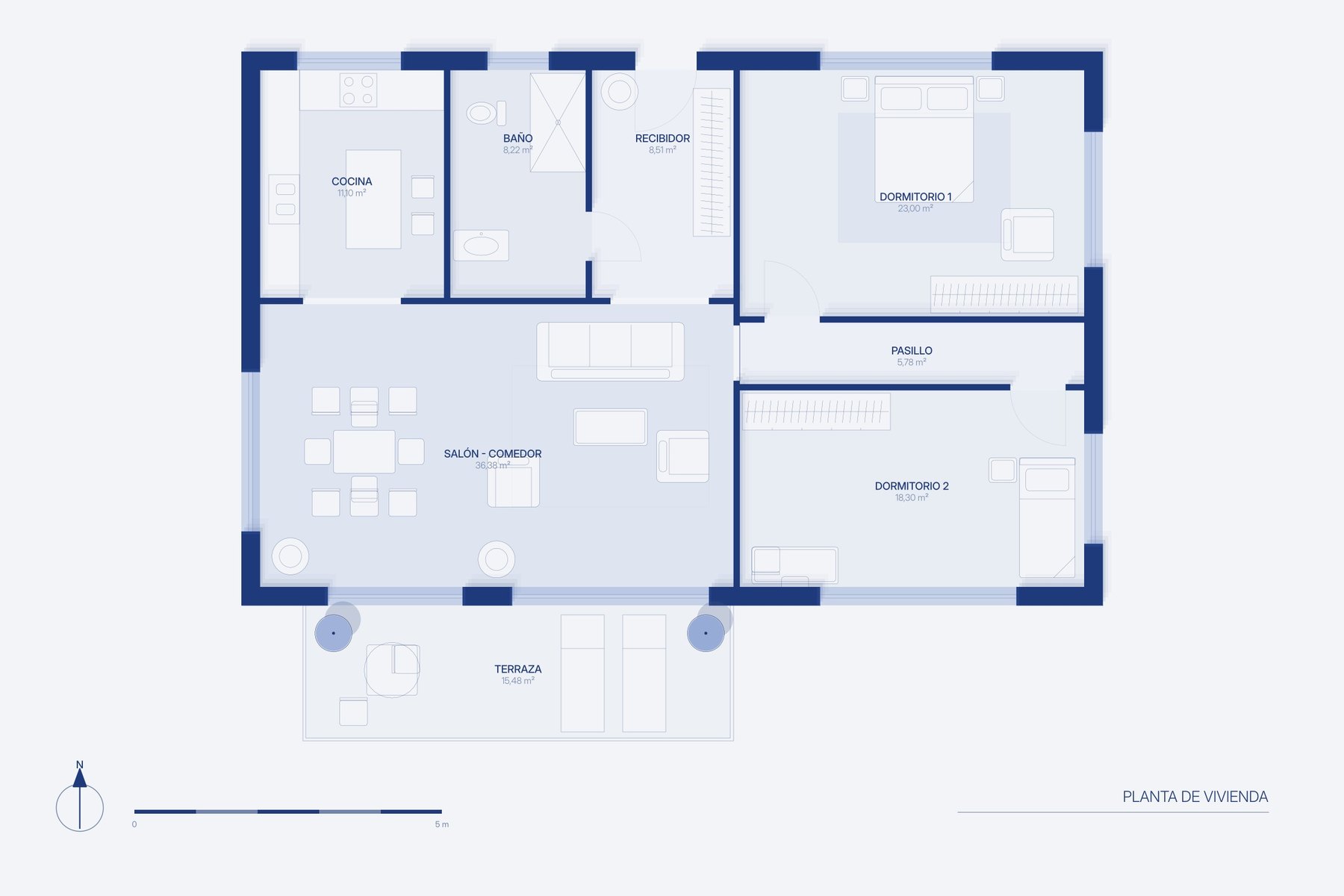

CAD Cleaner tidies your drawing in moments: named layers, pens and palette, filled walls, trees, people, furniture, shadows, areas and titles. Then exports it as a scaled PDF or a competition-style image.
- DXF
- 3DM (Rhino)
- PDF a escala
- PNG
Layers and pens
Recognises walls, openings, furniture… and gives them weight and colour.
Plot styles
Upload your .ctb and the drawing looks the way it prints.
Areas and hatches
Automatic area schedule and hatches per room.
Trees and people
Populate the drawing with library blocks.
Competition image
One or two inks, with shadows and solid poché.
PDF to scale
Ready to print or to place on your board.
How it works
- 1
Upload your DXF or 3DM.
- 2
Choose mode and style.
- 3
Download the clean DXF, PDF or image.
FAQ
How much does it cost?
You can try it for free with a librARy account. The tool licence unlocks every option and larger files.
Do I need to install anything?
No. It runs in the browser on Windows, Mac or Linux, and many tools also work on a phone or tablet.
Does it open DWG files?
Save the DWG as DXF from your CAD software (or open it in VISOR CAD, which converts it) and upload it.
Tell me when it's out
We'll email you the day it opens, plus librARy news (one email a month at most).
